Extended single-wall roof outlets for cold roofs with integrated custom made sleeve

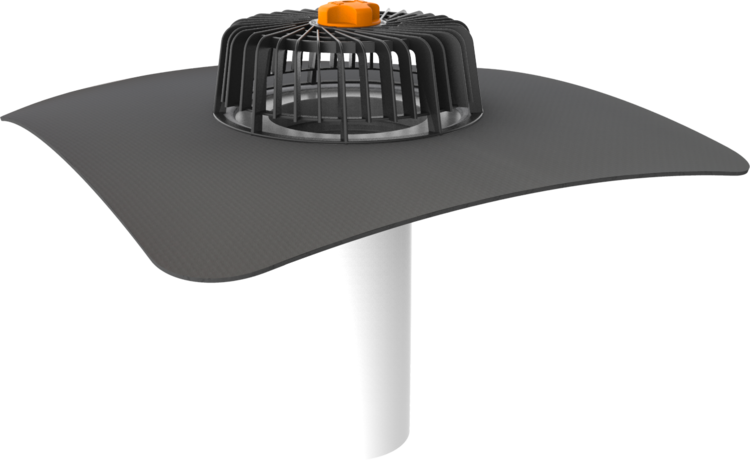

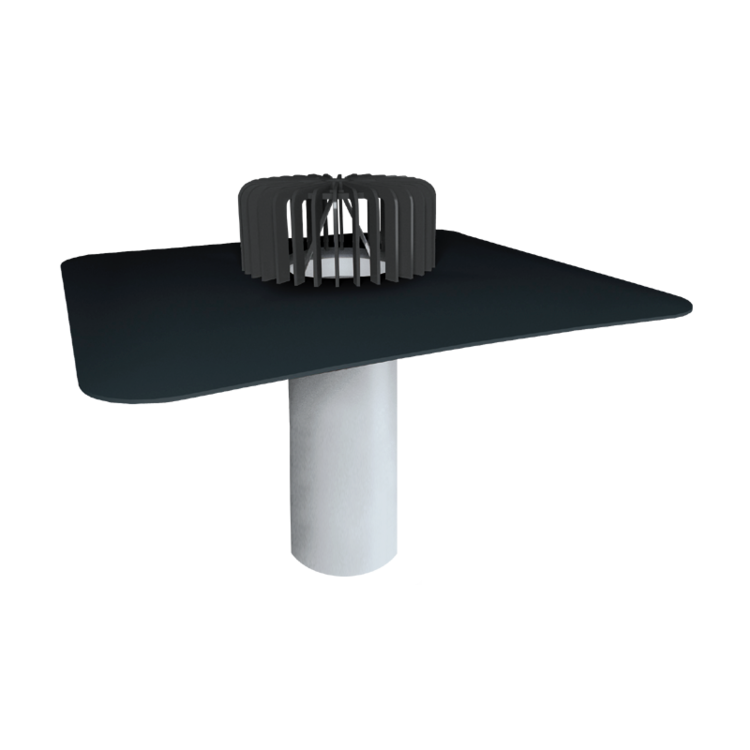

TOPWET roof outlet cold roofs with an integrated custom made sleeve (EPDM, TPO, FPO, PR, STE - suitable for cold liquid applied applications) with a leaf guard. The outlet may be inserted into redeveloped pipes up to a neck, but it has lower drain capacity. Length 400 mm, option of extension up to 1000 mm on request.
| DN / outer diameter | Outlet length | ||
|---|---|---|---|
| TWJ BZ 50 ___ | DN 50 / 50 mm | 400 mm |
Drawing documentation |
| TWJ BZ 75 ___ | DN 70 / 75 mm | 400 mm |
Drawing documentation |
| TWJ BZ 90 ___ | DN 90 / 90 mm | 400 mm |
Drawing documentation |
| TWJ BZ 110 ___ | DN 100 / 110 mm | 400 mm |
Drawing documentation |
| TWJ BZ 125 ___ | DN 125 / 125 mm | 400 mm |
Drawing documentation |
